Lab Layout and Plans

Lab Layout and Plans

I have run GOAD more times than I care to admit -- the lab is a ton of fun to spend in and was a great way to prep for OSEP. I recently had a chance to play with the SCCM lab that is also available and was able to play with the lab using mayflys notes/writeup (seen here). The plan was to just reinstall GOAD (This time with ELK as I wanted to see about alerting) -- but then I thought why not try to just roll my own! So the following post is what I have created thus far.

The below also only speak to the configuration - If things change in a large fashion I will try and update this post but otherwise I will simply make separate posts on techniques or tooling I am playing with in the lab, with the goal to show what a default install looks like - breaking it and why things may get broken - and fixing the issues that creep up.

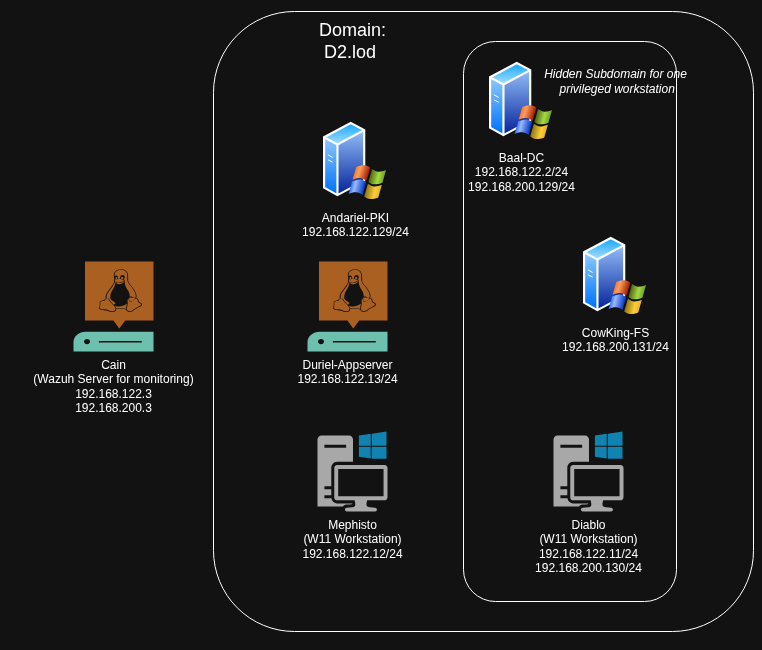

Current Machines

1. Baal-DC

• Windows Domain Controller
  • (Windows Server 2022)
• Notes: Dual homed to talk to the CowKing File Server

2. Andariel-PKI

• Windows ADCS Machine
  • (Windows Server 2022)
• Notes: I believe the best case scenario is to have an offline ADCS, but that seemed like a waste for the lab - however I didnt want to run it on the DC, so as a sort of middleground between best practice and worst practice I just made a separate PKI machine.

3. Duriel-AppServer

• Domain Joined Ubuntu 24.04.2 LTS machine
• Runs Mail Server
• Docker installed to stand up vulnerable webapps for webapp testing practice

4. Mephisto

• Windows 11 workstation
• The "Easy" Machine
• Auto open email script on the machine to simulate a simple "phish" (nothing wild but allows the ability to play with word/excel macros, hta files, etc.
• Will not get any extra hardening

5. Diablo

• Windows 11 workstation
• The "Hard" Machine
• Will look to use a personal BD Total Security license on
• Will look to put Applocker restrictions on
• Only machine that is dual NIC'd to talk to File Server
  • This was put in place as a way to practice tunneling

6. Cow King

• Windows File Server
  • (Windows Server 2022)
• Notes: There is a single share from CowKing to a user on Diablo
• The idea (as mentioned) was to have this segregated as a chance to pivot and could be an example for an objective based pentest vs just shooting for DA

7. Cain

• Not domain joined Ubuntu 24.04.2 LTS machine
• Wazuh agents deployed via GPO
• Will be used to monitor tooling and see what gets flagged.

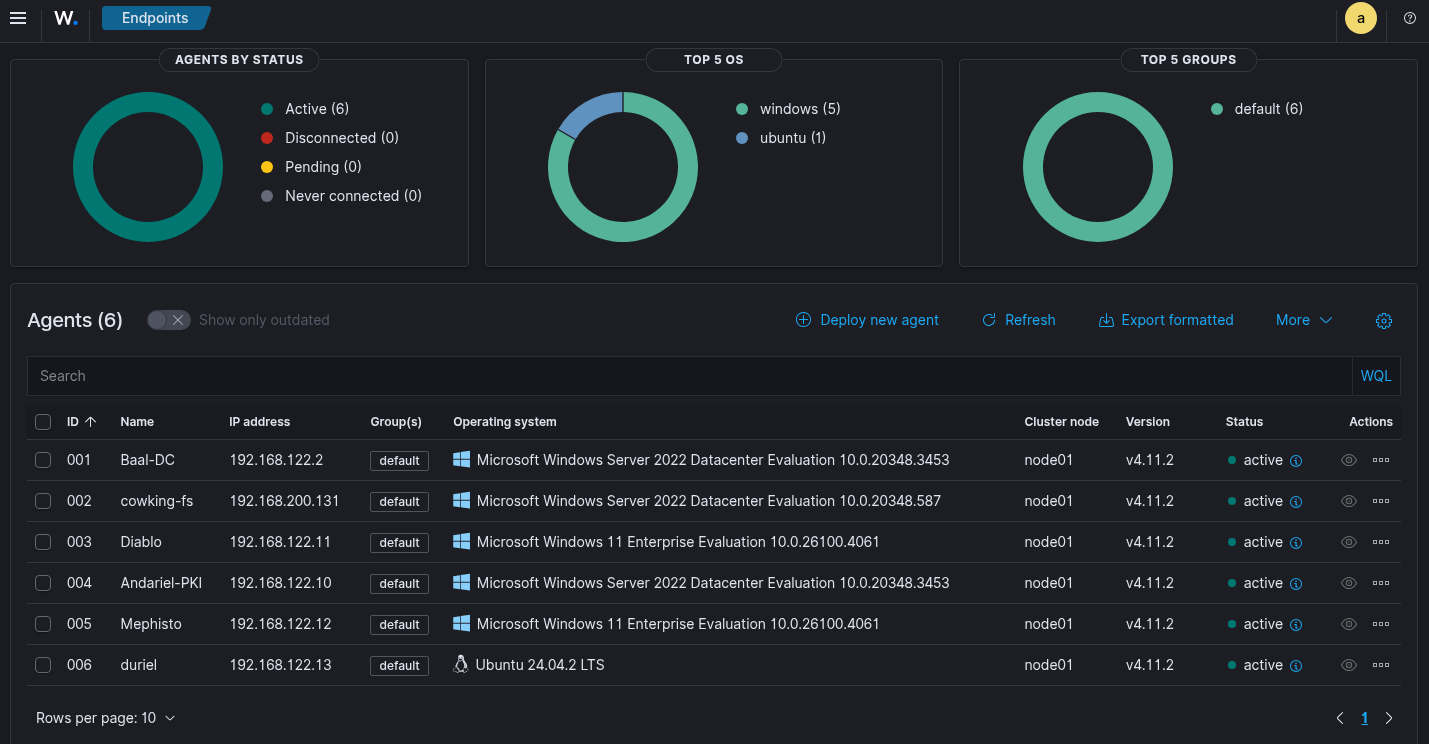

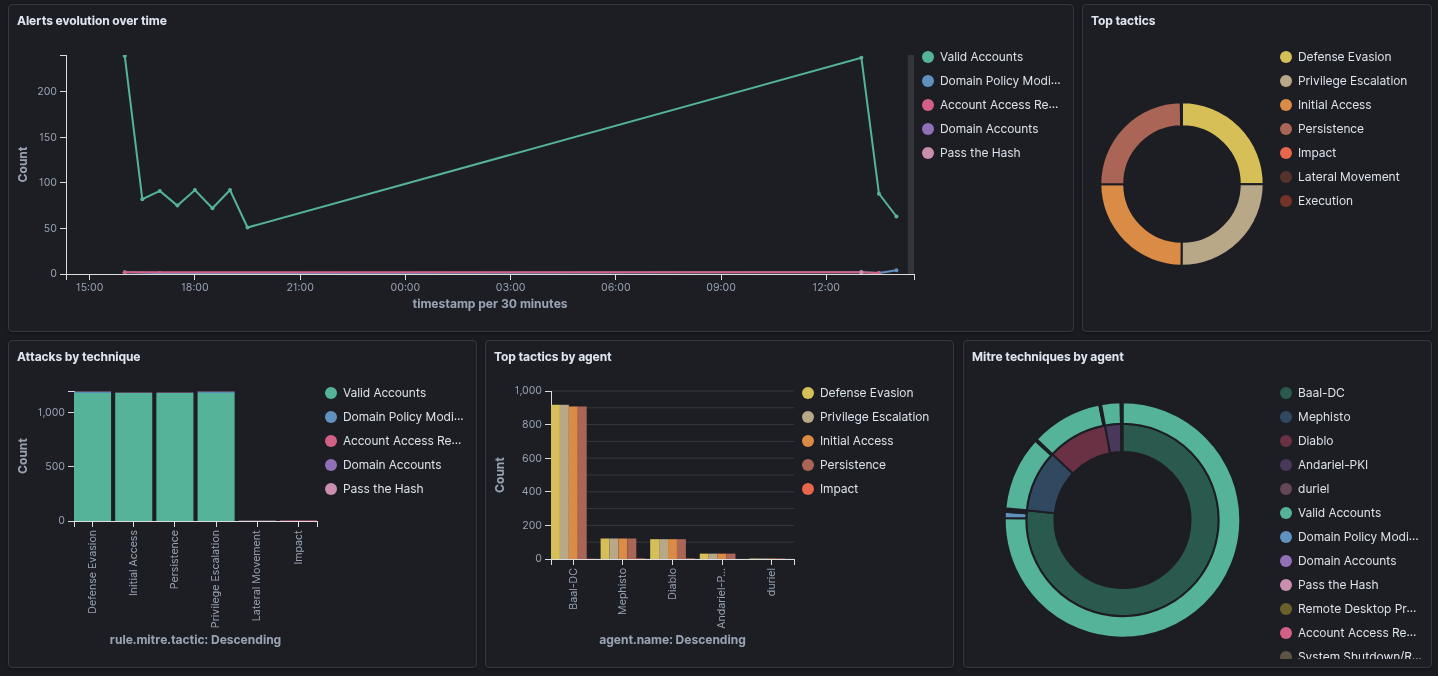

Below are some examples of the graphs, these are simply the defaults when you load the Wazuh docker installation - I'm quite excited to dig into it and setup alerting and do some customization:

Lab Plans

So as mentioned at the start - the goal here was create my own version of GOAD, but I didnt want to create too many attack paths to start nor all at once.

So currently the following exists in the lab.

1. There is an auto email open script on Mephisto, so we can send emails to gheed[at]d2.lod and he will open emails

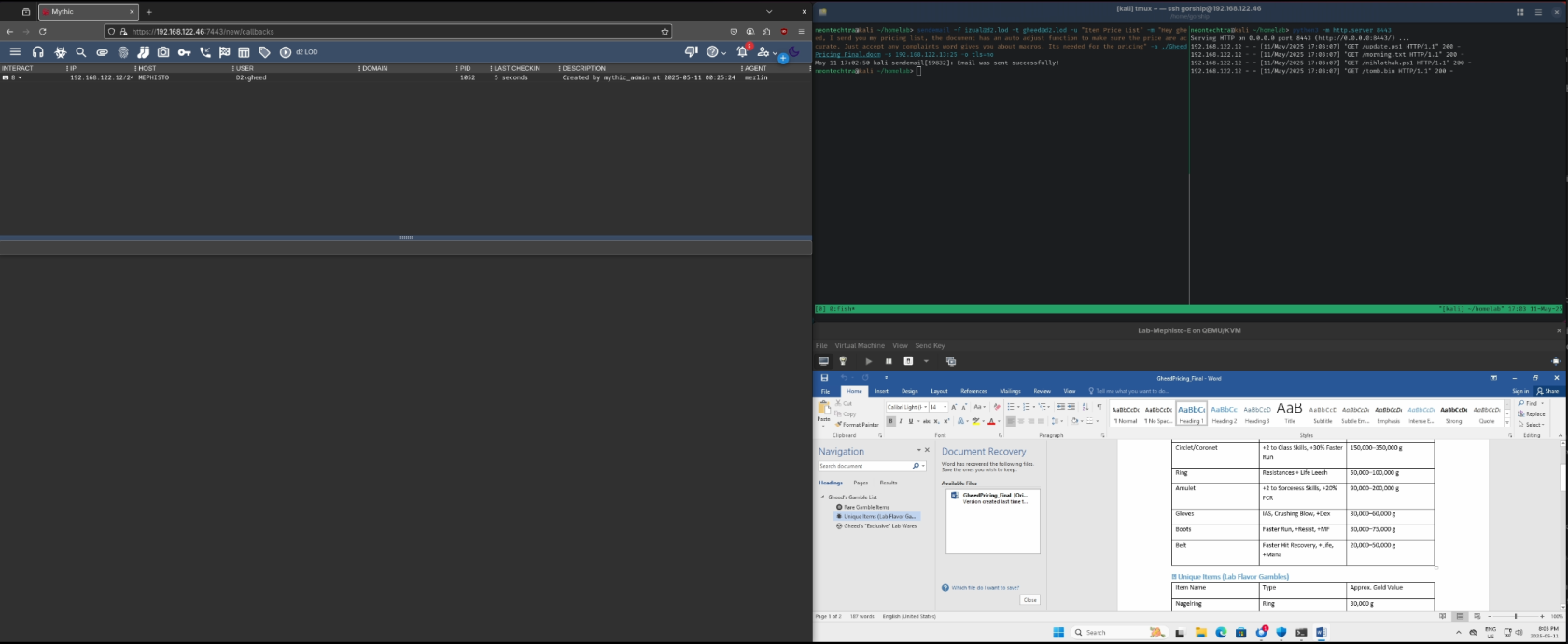

Example:

• Here is just a simple docm to get around defender, nothing crazy and would involve the user enabling macros but still fun and good practice.

2. Appserver Applications

• Hosting vulnerable applications in docker on the appserver is the other plan, I havent tested yet but I believe there should be a way to leverage --rm and --privileged so the containers are disposable and vulnerable.
  • eg. Get root/RCE etc, escape the container, and you're on the domain box

3. SSH to Appserver

• The nice thing about having a domain joined linux machine is we could connect via SSH to the appserver, and then as root practice taking over keytab files

4. Diablo (Hard) Machine

• AV Evasion
  • At the time of writing (May 2025) I havent completed Maldev academy but its on the list (currently doing just an online C course to learn a bit of coding first). The Goal being after maldev to really dig into evading some of these stronger AVs/EDRs. I think a lot/some Red teams will simply use commercial packers but I would love to work on my own Mythic agent with tooling implemented from Maldev academy...Big dreams, but it will take time.
  • That being said this machine would be a good test ground for that
• Applocker
  • Under the pretext that this machine needs applocker for reasons, we could also use it as a testbed for playing with applocker bypasses.

5. Books

• I recently picked up a few books from no starch press and having my own lab to setup a lab for GraphQL (Blackhat graphql), Windows security Internals, Blackhat bash etc.. will all be nice as I can break/fix/document and not just treat it as something disposable. Having a bit of skin in the game to keep something working I think makes it interesting and helps a person care a little about what they are doing.

Overall there is no set path, but its intended to be flexible and I hope to use this platform to set a misconfiguration/vulnerability, show the impact and then patch it. Documentating how we did it along the way. The things listed above are just an example of preconfigured things I enjoy playing with when I'm bored.

Installation

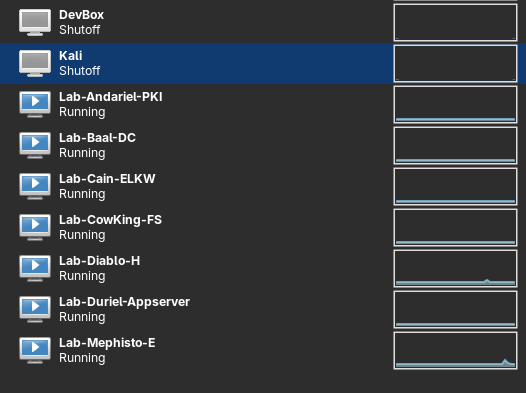

The whole lab sits on my host machine and leverages Qemu/virt-manager

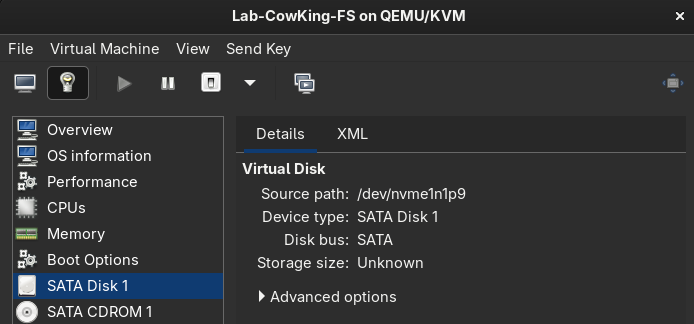

• I split up a secondary nvme drive into little chunks and pass those through as the hard drive for the machine.
  • Each machine has its own real hardware, making them insanely fast compared to a file acting as storage.

Example

If you want to look at using virt-manger for passing through hardware (GPU Passthrough is really cool and you should try it!!) a good resource is Chris titus' website.

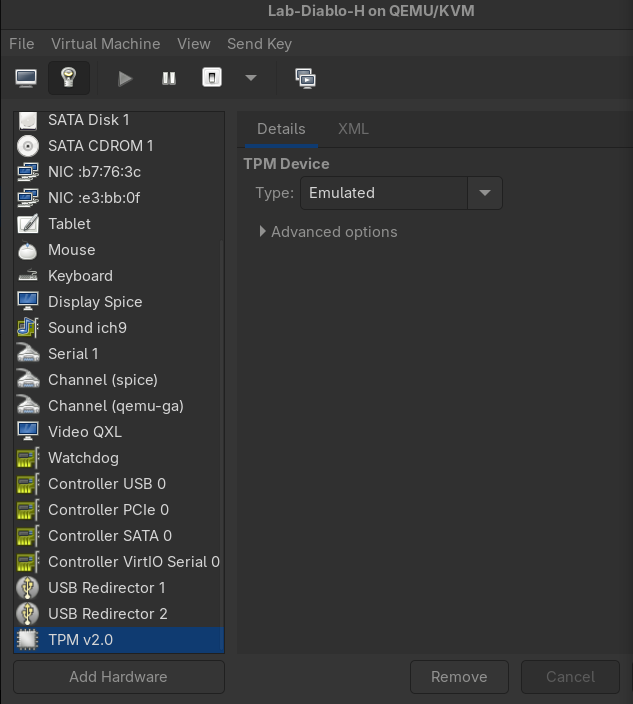

• Just a reminder, you will want to make sure you virtualize a TPM if you are installing windows 11

Example

Next Steps

There isnt really too much else to say, I just wanted to post a little about this project - it will always be in a state of flux as I tinker / add / remove features etc but I am excited about having my own space to work on stuff
